    ISO13485 600mm PVC Medical Device Closed Suction Catheter Closed Suction System 16FR

    Ask Lasest Price
    Brand Name : MCREAT/OEM
    Model Number : MC-07213
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100, 000PCS/Month
    Delivery Time : Depends on Order Quantity
    • Product Details
    • Company Profile

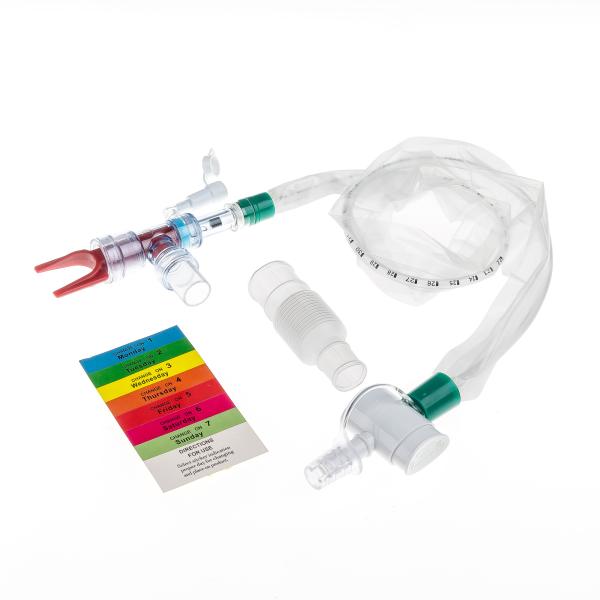

    ISO13485 600mm PVC Medical Device Closed Suction Catheter Closed Suction System 16FR

    Closed Suction Catheter (L-Piece) 72hours for Adult, Automatic Flushing 16Fr Endotracheal


    Display video


    https://youtu.be/XIGHWxWpacs


    Features

    Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.

    - It is designed with a protective sleeve to isolate the germs inside and help caregivers avoid cross-infection.

    -Simultaneous ventilation design will allow the patients' comfort of suctioning without stopping the air ventilation.

    -Automatic Flushing Closed Suction System is the only catheter that retracts within a unique and isolated turbulent cleaning chamber. The turbulent cleansing action results in an 89% cleaner catheter tip compared with a standard closed suction system. This reduced colonization may help reduce the risk of VAE and VAP in your ventilated patients.

    -A turbulent cleaning chamber creates cleansing action, resulting in a cleaner catheter.

    -Hinged valve isolates catheter tip and helps prevent inadvertent lavage.

    -Integrated MDI port (optional)


    Packaging & Delivery

    -Packaging Details

    -Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton

    -Delivery Time: Within 20 days. It depends on the quantity of order



    Product Description


    Closed Suction Catheter Standard Form
    ClourSizeProducts' Specification & DescriptionTube ODLength of TubeProduct Code
    BlackAdult/72H/EndotrachealDouble Swivel Elbow Endotracheal, Flex Tube10Fr (3.35mm)600mmMC-07210
    WhiteAdult/72H/EndotrachealDouble Swivel Elbow Endotracheal, Flex Tube12Fr (4.05mm)600mmMC-07211
    GreenAdult/72H/EndotrachealDouble Swivel Elbow Endotracheal, Flex Tube14Fr (4.75mm)600mmMC-07212
    OrangeAdult/72H/EndotrachealDouble Swivel Elbow Endotracheal, Flex Tube16Fr (5.45mm)600mmMC-07213
    BlackAdult/72H/TracheostomyDouble Swivel Elbow Tracheostomy, Flex Tube10Fr (3.35mm)300mmMC-07200
    WhiteAdult/72H/TracheostomyDouble Swivel Elbow Tracheostomy, Flex Tube12Fr (4.05mm)300mmMC-07201
    GreenAdult/72H/TracheostomyDouble Swivel Elbow Tracheostomy, Flex Tube14Fr (4.75mm)300mmMC-07202
    OrangeAdult/72H/TracheostomyDouble Swivel Elbow Tracheostomy, Flex Tube16Fr (5.45mm)300mmMC-07203


    We can produce the closed suction catheter according to customers' requirements.


    ISO13485 600mm PVC Medical Device Closed Suction Catheter Closed Suction System 16FR


    Instructions for Use
    Video:

    https://youtu.be/XIGHWxWpacs

    1. Inspect the product before use. Do not use it if the package is not intact.



    2. Open the sealed package and take out the product.

    3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.

    4. Connect ventilator tube to the Revolvable Ventilator Connector.

    5. Attach the date label to the color ring.

    6. Before suctioning commences ensure that the cap of the MDI Port/ irrigation Port is closed.

    7.Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/ Tracheostomy tube.

    *Suctioning Procedure

    Caution-always use the recommended vacuum levels./Consider length of suctioning time

    1.Grip the three-way adaptor in one hand and with the other hand feed the suction
    a catheter into the Endotracheal tube/ Tracheostomy tube, to the required depth.
    Depth markers can be visible through the protective cover for your guidance.

    2.Once the suction catheter is in the desired position/ depth depress the vacuum
    Control valve to apply suction.

    3. Remove the suction catheter until the protective sleeve is straight.

    4.Repeat steps1-3 as necessary.
