Brand Name : | MCR / OEM |
Model Number : | MC-02440 |
Certification : | CE, ISO, FDA |
Price : | 2.2-4.9usd/pc |
Payment Terms : | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
Supply Ability : | 90000-150000pcs/momth |
Delivery Time : | 5-45 days |

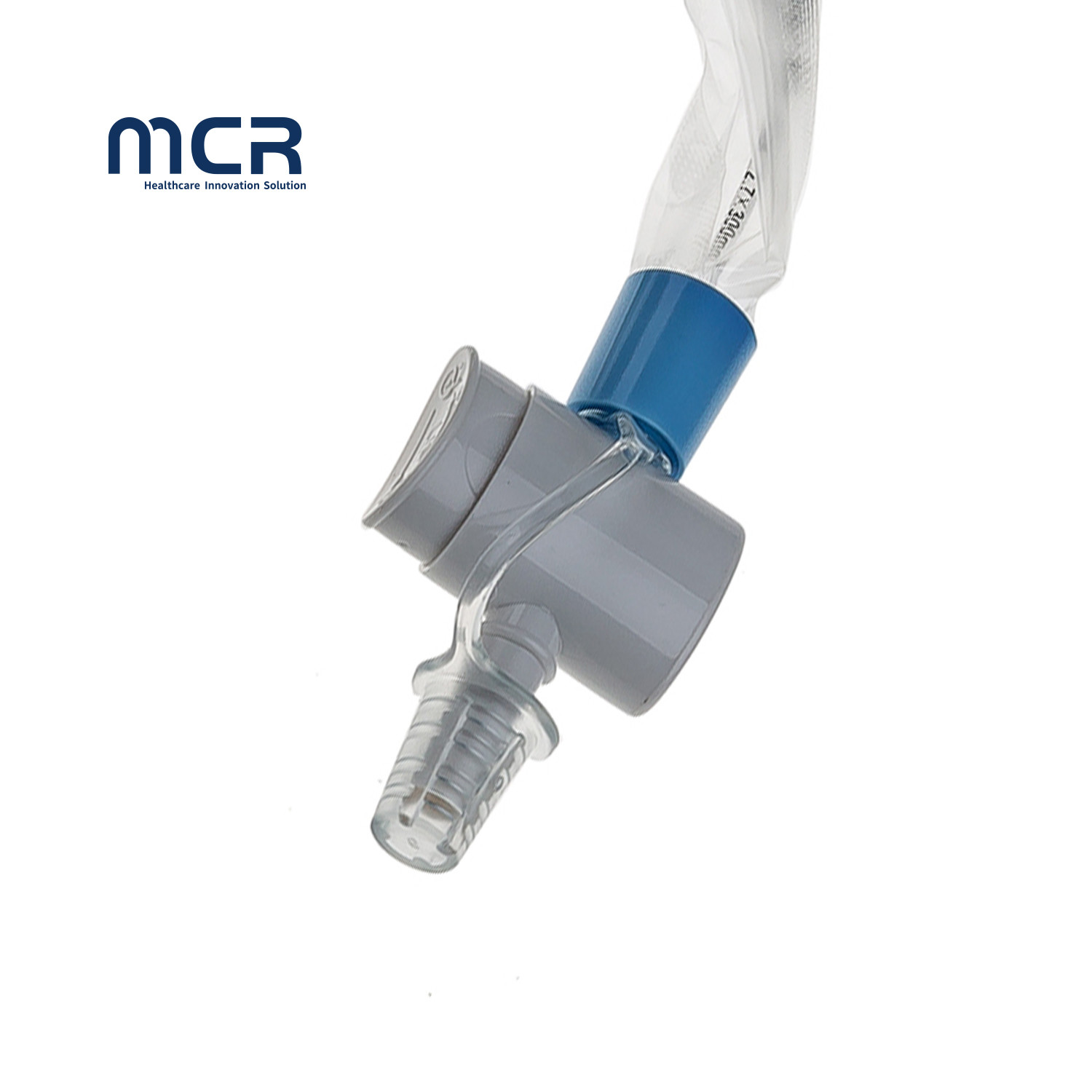

Fr5--Fr24 Closed Suction Catheter with Control for Child Type 24 hours
1.Closed suction catheter set consists of a three-way valve, a
control box Assembly and a suction catheter.
2.The suction catheter extends from the three-way valve to the
control boxand is covered in the film. The three-way valve has
distilled water deliveryport for cleaning after using.
3.When in use, the three-way valve connects to an endotrachael tube
throughpatient port and a ventilator through the breathing port.
4.Control box button activates suctioning and suction catheter can
be insertedor retracted through the three-way valve into patients
airway.
5.The catheter is graduated for easy identification of depth of
insertion.
Fr5--Fr24 Closed Suction Catheter with Control for Child Type 24 hours
Product Data Sheet
Product Code | Size | Color Code | Tube Code(mm) | Length of Tube(mm) |
MC-02440 | Neonatal/24H | Grey | 5Fr(1.7mm) | 300mm |
MC-02441 | Neonatal/24H | Light Green | 6Fr(1.95mm) | 300mm |
MC-02442 | Pediatric/24H | Lvory | 7Fr(2.3mm) | 300mm |
MC-02443 | Pediatric/24H | Light Blue | 8Fr(2.7mm) | 300mm |
MC-02444 | Pediatric&Child/24H | Black | 10Fr(3.35mm) | 400mm |
MC-02445 | Big Child/24H | While | 12Fr(4.05mm) | 400mm |
Fr5--Fr24 Closed Suction Catheter with Control for Child Type 24 hours
![]() |
