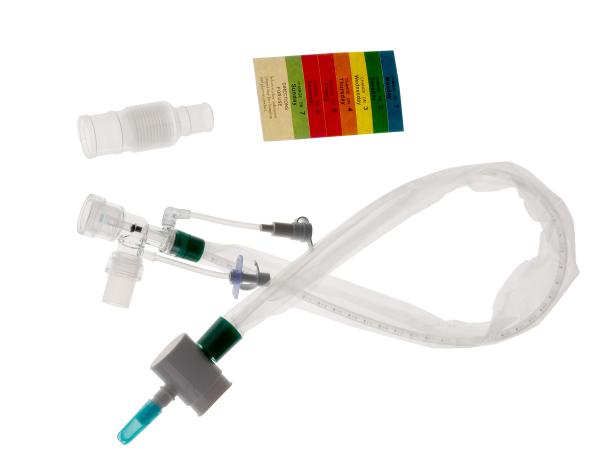

Closed Suction System (L-Piece) 24H Endotracheal 12Fr 600mm

Features

- Continuous Breathing
Simultaneously ventilation

- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.

- Double Swivel Connector
15mm connector of Double Swivel

- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions

- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available

- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.

Packaging & Delivery

-Packaging Details

-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton

-Delivery Time: Within 20 days. It depends on the quantity of order

Product Description

We can produce the closed suction catheter according to customers' requirements.

Instructions for Use

*Set up Procedure

1. Inspect the product before use. Do not use it if the package is not intact.

2. Open the sealed package and take out the product.

3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.

4. Connect ventilator tube to the Revolvable Ventilator Connector.

5. Attach the date label to the color ring.

6. Before suctioning commences ensure that the cap of the MDI Port/ irrigation Port is closed.

7.Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/ Tracheostomy tube.

*Suctioning Procedure

Caution-always use the recommended vacuum levels./Consider length of suctioning time

1.Grip the three-way adaptor in one hand and with the other hand feed the suction
a catheter into the Endotracheal tube/ Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.

2.Once the suction catheter is in the desired position/ depth depress the vacuum
Control valve to apply suction.

3. Remove the suction catheter until the protective sleeve is straight.

4.Repeat steps1-3 as necessary.

MCREAT (GUANGZHOU) BIO-TECH CO.,LTD Headquarters is located in Hua Chuang Industrial Park, Guangzhou, China. Founded in 2018, MCR Medical have been devoted to providing medical disposable products around the world, focusing on Anaesthesia, Respiratory, Urology, Gastroenterology and home care products. Our products have been sold to North America, Europe, South America, Asia, Middle East and so on.

Now MCR have obtained GMP, ISO 13485 certification, and variety of medical products have received the CE certificate, and registered in FDA in the United States.

MCR Medical is also committed to bring innovative products and health solutions for the medical field. We have an elite R&D Team with strong strength in research and development, management services to serve medical marketing and customers needs.

MCR Medical has a 2,400 square meters of 100,000 level purification workshop onsite.To provide superior medical products to medical field, MCR Medical is equipped with advanced production line and inspection facilities.

Consistency and quality is our mission. From Raw material incoming control to production line inspection, MCR Medical strictly regulates each step of production process ensures the excellent quality of each product. MCR Medical is also equipped with physical and chemical lab that meet CFDA standard to provide higher quality products.

In recent years, we have been striving to become a medical production and sales enterprise with innovative research and development and Superior quality in the medical industry. We pay attention to the quality high performance and quality control of the whole process, so as to ensure that we can provide quality products for customers.

MCR Medical has been a significant medical catheter supplier in the world. MCR annual output value and sales are increasing year by year. Focusing on the future, we are expanding rapidly into new products for the world’s healthcare market.

To strive for a happier & healthier tomorrow. Implement our philosophy ‘Do something for health’.
