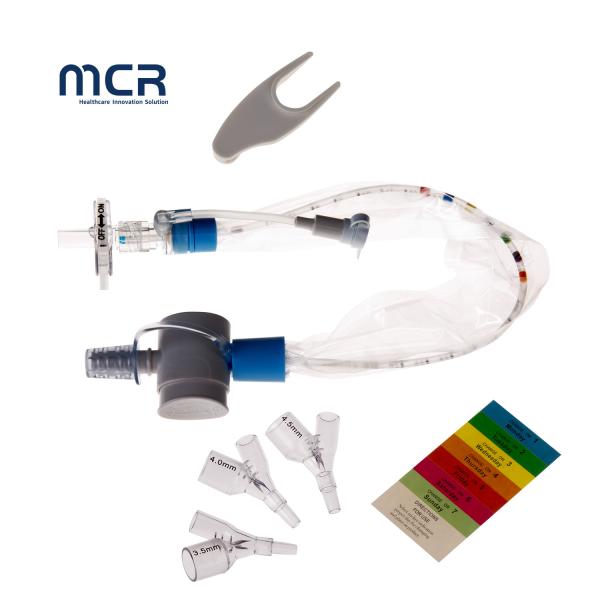

3 Y Shape Connector Closed Suction Catheter With Specrator
A Closed Suction System with the possibility of cleaning the
catheter without lavage, hence without respiration interruption.
The catheter is isolated from the trachea with triple-swivel and
vac control.
Ideal for routine hospital use in the ICU with your Ventilated
Patients
A whole range of problems are encountered during long-term
ventilation in everyday hospital practice. We have developed the
OptiFlo closed suction system in order to make ventilation
especially safe and hygienic, both for patient and nursing staff.
- It is designed with a protective sleeve to isolate the germs
inside and help caregivers avoid cross-infection.
-Simultaneously ventilation design will allow the patients comfort
of suctioning without stopping the air ventilation.
Transparent and lightweight, this series was developed specifically
for pediatric and neonatal patients undergoing mechanical
ventilation. Unlike the adult version, the Y-adapter with MDI port
with minimal dead space is designed for high frequency ventilation
and easy exchange for endotracheal and tracheostomy tubes.Minimum
dead space adapter with MDI portReplaceable adapters per packColor
depth indicatorColor coding for catheter size
identificationErgonomic design with security lockSuction control
switch and one-handed operationCatheter with smooth tip and side
holes
Product Data Sheet
| Product Code | Size | Color Code | Tube Code(mm) | Length of Tube(mm) |
| MC-02440 | Neonatal/24H | Grey | 5Fr(1.7mm) | 300mm |
| MC-02441 | Neonatal/24H | Light Green | 6Fr(1.95mm) | 300mm |
| MC-02442 | Pediatric/24H | Lvory | 7Fr(2.3mm) | 300mm |
| MC-02443 | Pediatric/24H | Light Blue | 8Fr(2.7mm) | 300mm |
| MC-02444 | Pediatric&Child/24H | Black | 10Fr(3.35mm) | 400mm |
| MC-02445 | Big Child/24H | While | 12Fr(4.05mm) | 400mm |
-Turbulent Cleaning Chamber
A Closed Suction System with the possibility of cleaning the
catheter without lavage, hence without respiration interruption.
The catheter is isolated from the trachea with triple-swivel and
vac control.
Ideal for routine hospital use in the ICU with your Ventilated
Patients
A whole range of problems are encountered during long-term
ventilation in everyday hospital practice. We have developed the
OptiFlo closed suction system in order to make ventilation
especially safe and hygienic, both for patient and nursing staff.
Advantages at a glance…
no disconnection of tube
continuous ventilation
no Peep-loss
improved PEEP-seal
no drop in saturation
secretion control
catheter material is antibacterial
reduction of cerebral pressure
improved patient tolerance
extra-soft sleeve
lockable rinsing chamber
Feature
- Continuous Breathing
Simultaneously ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for
irrigational cleaning.
- Y Connector Type
ET "Y" neonatal and pediatric care adapters are available for 5, 6,
7, 8, French sizes closed suction catheter.
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping
functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside
and help caregivers avoid cross-inflection.
-Irrigation Port with Non-Return Valve
The non-return valve prevents backflow leakage during washing and
aerosolized secretion contamination.
